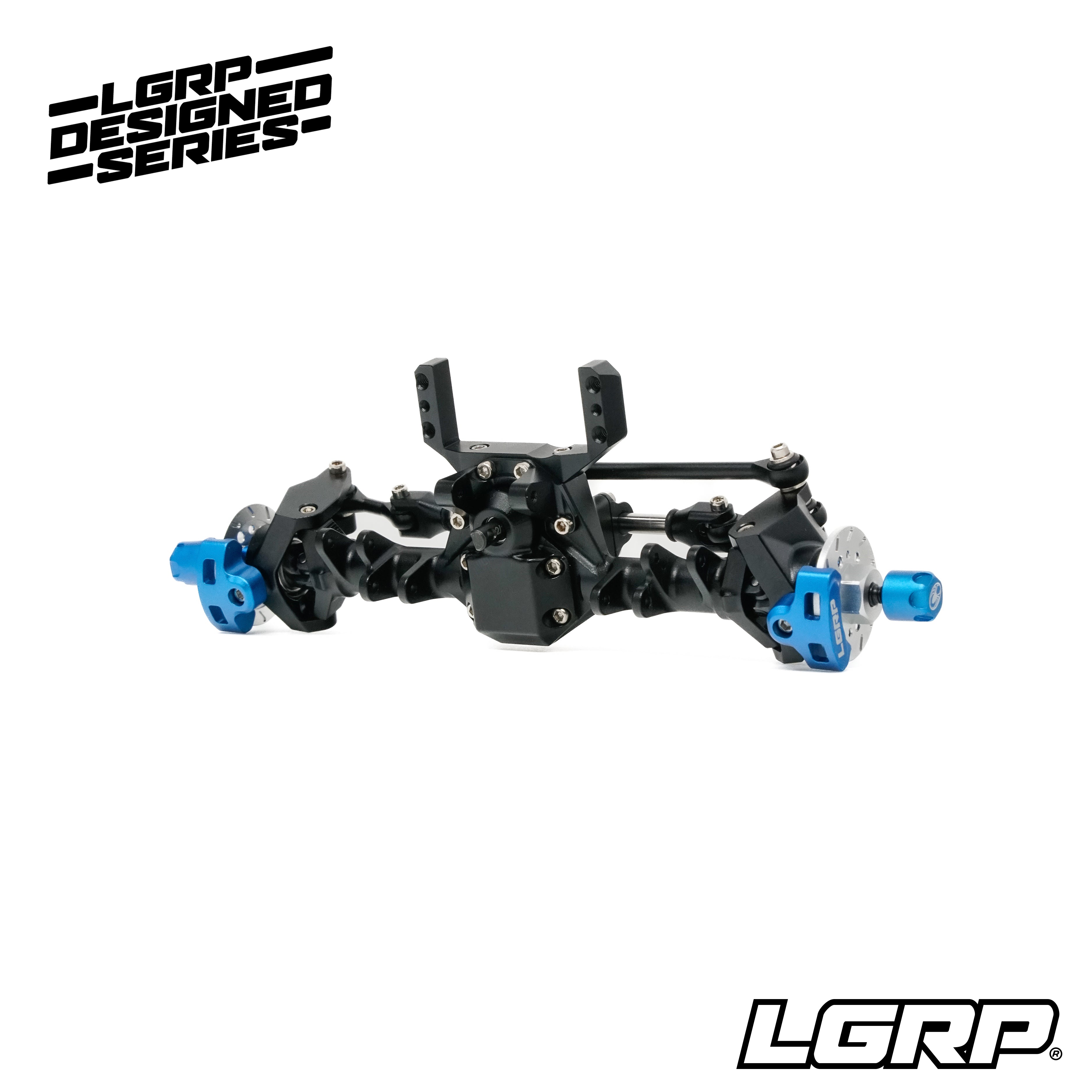

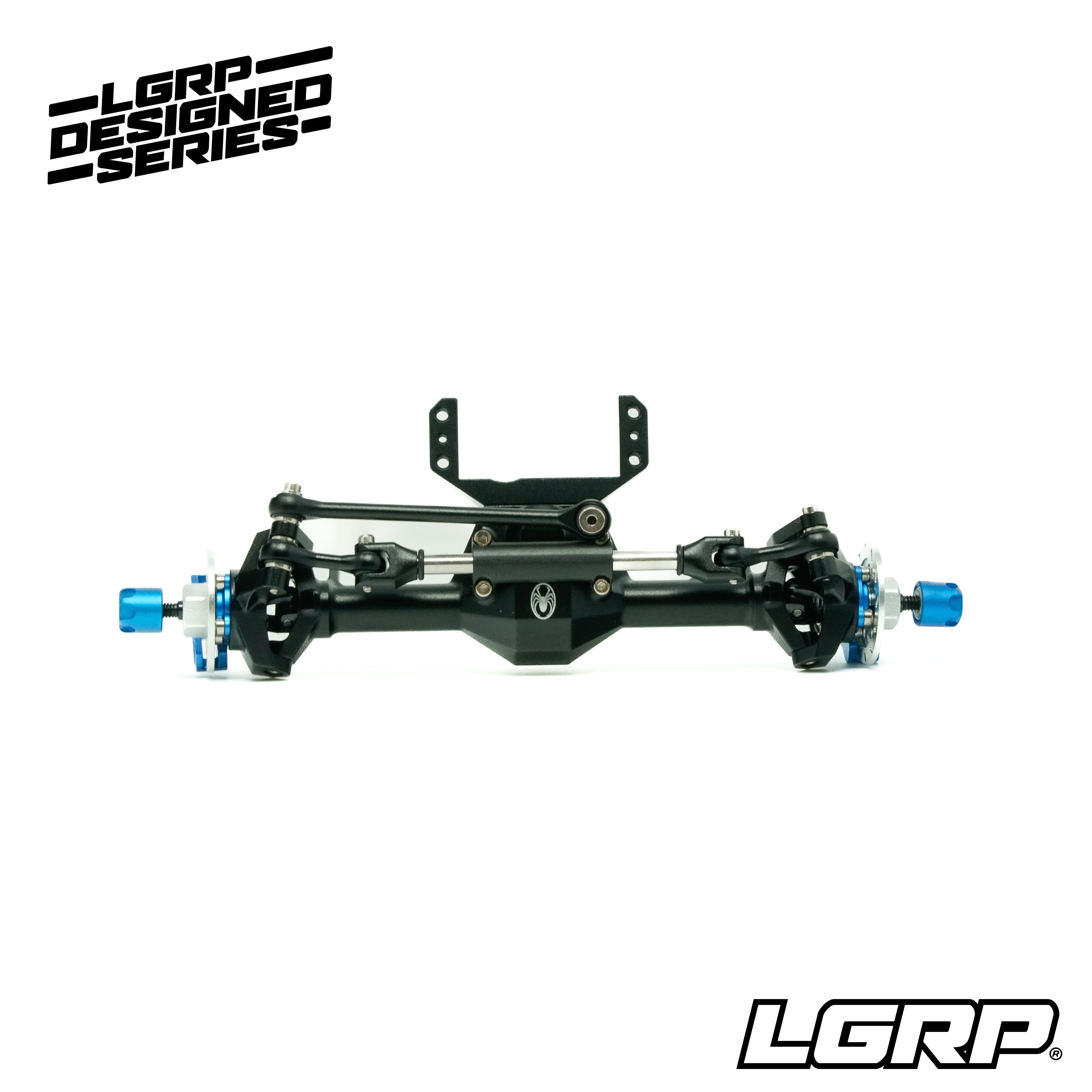

1/24 SPIDER 9™ SIGNATURE SERIES FRONT AXLE

Take your mini crawler to the next level with the officially licensed Spidertrax® Signature Series Spider 9™ Front Axle for SCX24™ based builds. Meticulously redesigned and scaled down to fit under your mini crawler. This axle brings the iconic Spidertrax® Off-Road design into the world of RC with unmatched realism and performance.

Disclaimer:
Please note that you are limited to purchasing a maximum of three front and three rear axles per customer. Any orders exceeding this limit will be refunded for the amount above the specified limit. Thank you for your understanding!

Key Features:

• • Licensed by Spidertrax® Off-Road: Authenticity meets performance with this scale replica of the renowned Spidertrax® Signature Series Spider 9™ axle. The majority of the machined aluminum construction of this axle is a combination of T-7075 and T-6061 with chromoly steel drive components.
  • +9mm Width Per Side: These axles add a total of +18mm over the stock SCX24™ axles, significantly enhancing stability and performance.
  • 2/12T & 2/16T Worm Gears: The front axle comes equipped with 2/12T worm gears, while the rear axle features 2/16T worm gears for optimized performance and smooth operation.
  • 2.5MM Stub Shafts & Nyloc Lug Nuts: This set includes Spidertrax hub caps for an extra touch of scale realism. The 2.5mm stub shafts offer enhanced strength and durability compared to the common factory M2 stub shafts, ensuring more reliable performance.
  • Scale Double-Ended Hydraulic Ram Steering: This gives your mini crawler a whole new look and scale detail while also providing integrated steering stops on the ram and knuckles.
  • Spidertrax® ultimate knuckles and C's: Spidertrax® legendary Ultimate knuckle and C design provides all of the same features and benefits of their proven 1:1 design, including larger shafts and U-joints, more steering radius, and larger bearings.
  • Scale Rotors & LGRP® Caliper Set: Non-functional rotors paired with LGRP® calipers enhance the detailed look of your crawler.
  • Licensed Brake Caliper sets: Elevate your build with sold-separate Wildwood and R1 Concepts licensed brake caliper sets for a completely scale and unique appearance—coming soon!
  • Double Shear Link & Shock Bracketry: Engineered for optimal link and shock mounting, delivering superior stability and articulation.
  • 2/12 Steel Front Differential Gears: Provides smooth operation and durability on the trail.
  • Scale Unit Bearing Caps: Adds a finishing touch of realism to your mini crawler build.
  • Custom billet aluminum 25t servo horn: To maximise packaging and style with the fo hydraulic ram steering.

Technical Specifications:

• Rear Axle Weight: 52g
• Hex to Hex Width: 104.25mm

What's included:

• Pre-assembled 1/24 Spider 9 Signature Series front axle
• (6) 1.4x10mm hardware for axle side links & shocks
• (4) 1.4mm nonlocking nuts for lower links/shocks
• (3) 4.95mm wide link balls for axle side shock mounts (3.5mm OD on ball)

Please note: All details and images are based on prototype units. Final production models may have variations in features or specifications.
