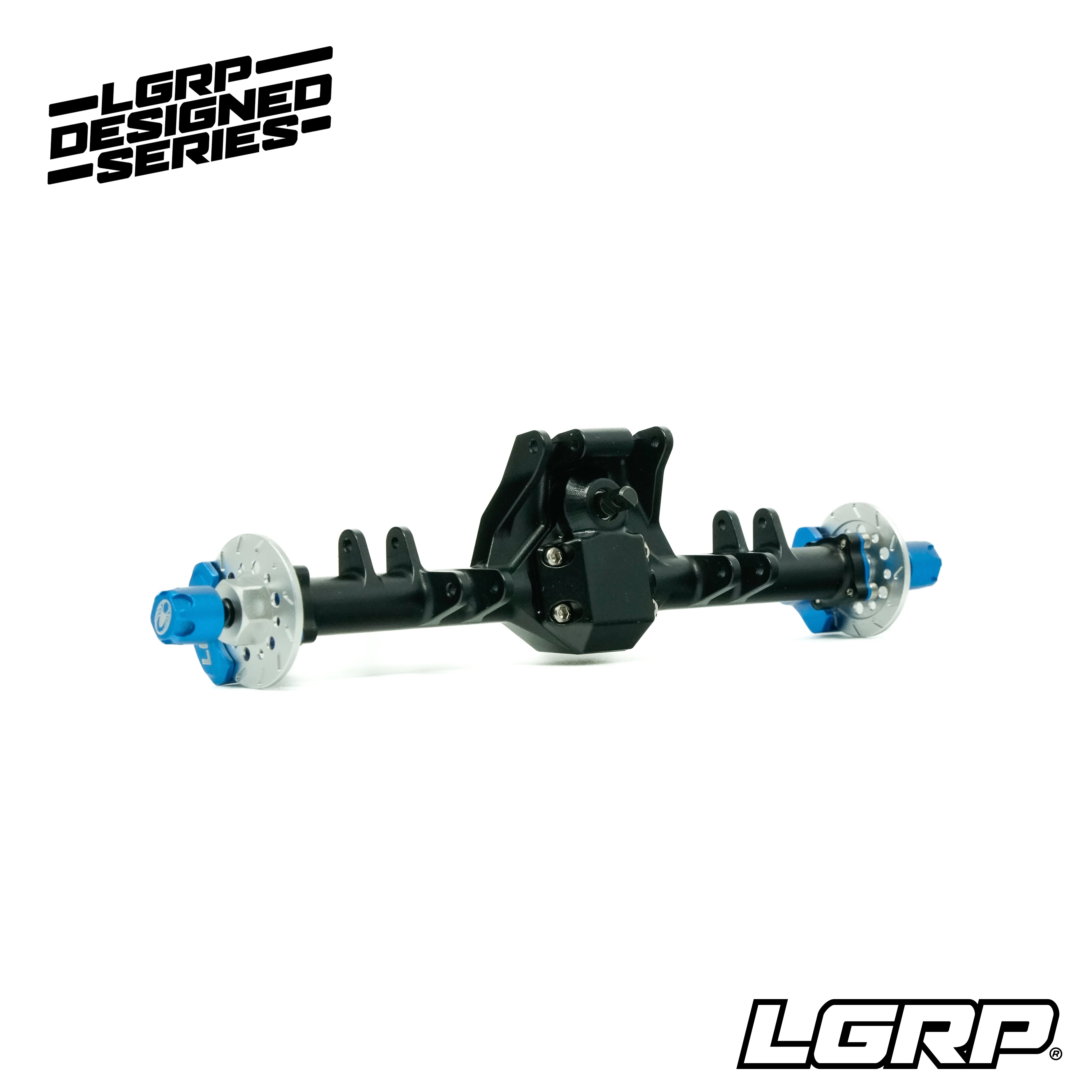

1/24 SPIDER 9 SIGNATURE SERIES REAR AXLE

Take your mini crawler to the next level with the officially licensed Spidertrax® Signature Series Spider 9™ Rear Axle for SCX24™ based builds. Meticulously redesigned and scaled down to fit under your mini crawler. This axle brings the iconic Spidertrax® Off Road design into the world of RC with unmatched realism and performance.

Expected ship date: January 2025

Key Features:

• Licensed by Spidertrax® Off Road: Authenticity meets performance with this scale replica of the renowned Spidertrax® Signature Series Spider 9™ Axle. The majority of the machined aluminum construction of this axle is a combination of T-7075 and T-6061 with chromoly steel drive components.
• Chromoly Rear Axle Shafts: Built to withstand the harshest conditions, ensuring durability and reliability during your crawling sessions. These axle shafts feature M2.5 stub shafts, providing a stronger and more secure fit compared to the factory SCX24's M2 stub shafts.
• 9mm Width Per Side: These axles add a total of +18mm over the stock SCX24™ axles, significantly enhancing stability and performance.

• 2/12T & 2/16T Worm Gears: The front axle comes equipped with 2/12T worm gears, while the rear axle features 2/16T worm gears for optimized performance and smooth operation.
• 2.5mm Stub Shafts & Nyloc Lug Nuts: Includes Spidertrax branded hub caps for that extra touch of scale realism.
• Scale Rotors & LGRP Caliper Set: Non-functional rotors paired with LGRP calipers enhance the detailed look of your crawler.
• Licensed Brake Caliper sets: Elevate your build with separately available Wilwood and R1 Concepts licensed brake caliper sets for a complete scale appearance - coming soon!
• Double Shear Link & Shock Bracketry: Engineered for optimal link and shock mounting, delivering superior stability and articulation.
• 2/16 Steel Rear Differential Gears: Provides smooth operation and durability on the trail.
• Scale Unit Bearing Caps: Adds a finishing touch of realism to your mini crawler build.

Technical Specifications:

• Rear Axle Weight: 30g
• Hex to Hex Width: 104mm


What's included:

• Pre-assembled 1/24 Spider 9 Signature Series rear axle
• (6) 1.4x10mm hardware for axle side links & shocks
• (4) 1.4mm non locking nuts for lower links / shocks
• (3) 4.95mm wide link balls for axle side shock mounts (3.5mm OD on ball)

Please note: All details and images are based on prototype units. Final production models may have variations in features or specifications.
