CREEPER BRUSHLESS MOTOR (GEN 2)
Introducing the LGRP® Creeper Brushless Motor - the ultimate crawler motor for your RC vehicles. Our in-house designed motor boasts a machined aluminum casing with precision machining, making it both durable and stylish.
Changes made:
-2mm hardware w/ 1mm steel shims
(SHIMS MUST BE INSTALLED UNDER THE HEAD OF EACH MOUNTING BOLT)
- 1.9mm knurled shaft with flat spot to also accept set screw pinions
- Included (2) 12t .3 mod pinion gears
Experience extreme bottom-end torque when crawling with our motor, providing you with the smoothest power and control you need to crawl the hardest obstacles. The LGRP™ Creeper Brushless Motor has a 1.9mm shaft and supplied M2 hardware with shims.
Included with the motor is an injection molded 12-tooth .3 mod pinion gear to match the stock SCX24™ spur gear, MR24 spur gear, and all the necessary hardware for easy installation. Our motor uses the PH3.0 plug - a common feature among most 1/18 and 1/24 ESCs.

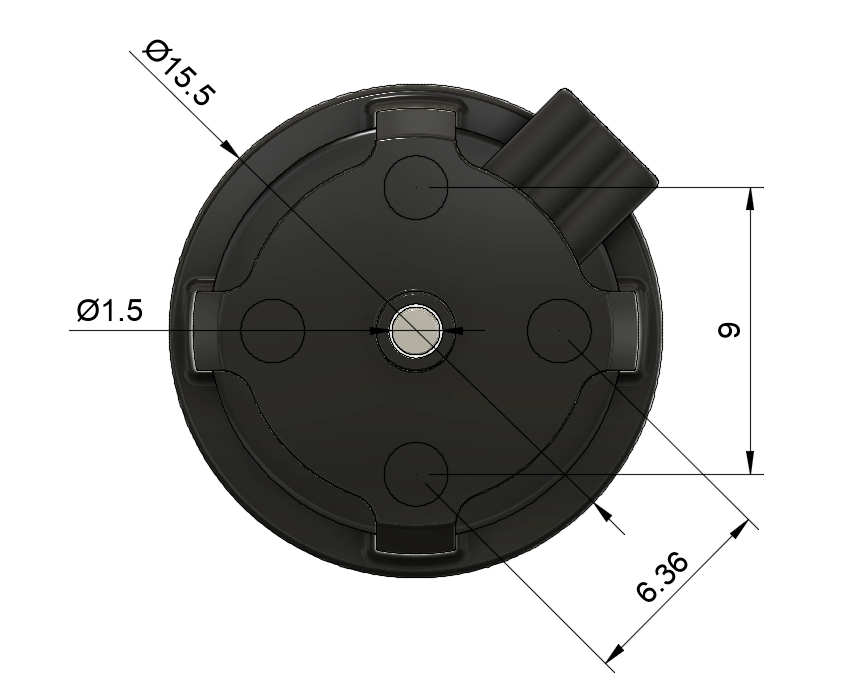

Please note that the LGRP® Creeper Brushless Motor is only compatible with the Furitek Micro Komodo Motor mount and other motor mounts with a 9mm bolt spread. It is not compatible with the stock SCX24™ motor plate or stock ESC. We highly recommend pairing our motor with the Furitek Lizard Pro 30A/50A ESC for optimal performance.
Choose the LGRP® Creeper Brushless Motor for the ultimate crawling experience - precision, power, and durability in one sleek package.
Specifications:
KV(RPM/MOTOR): 3500
VOLTAGE: 11.1v
SOLT/POLE: 12
RESISTANCE: 0.160HMS

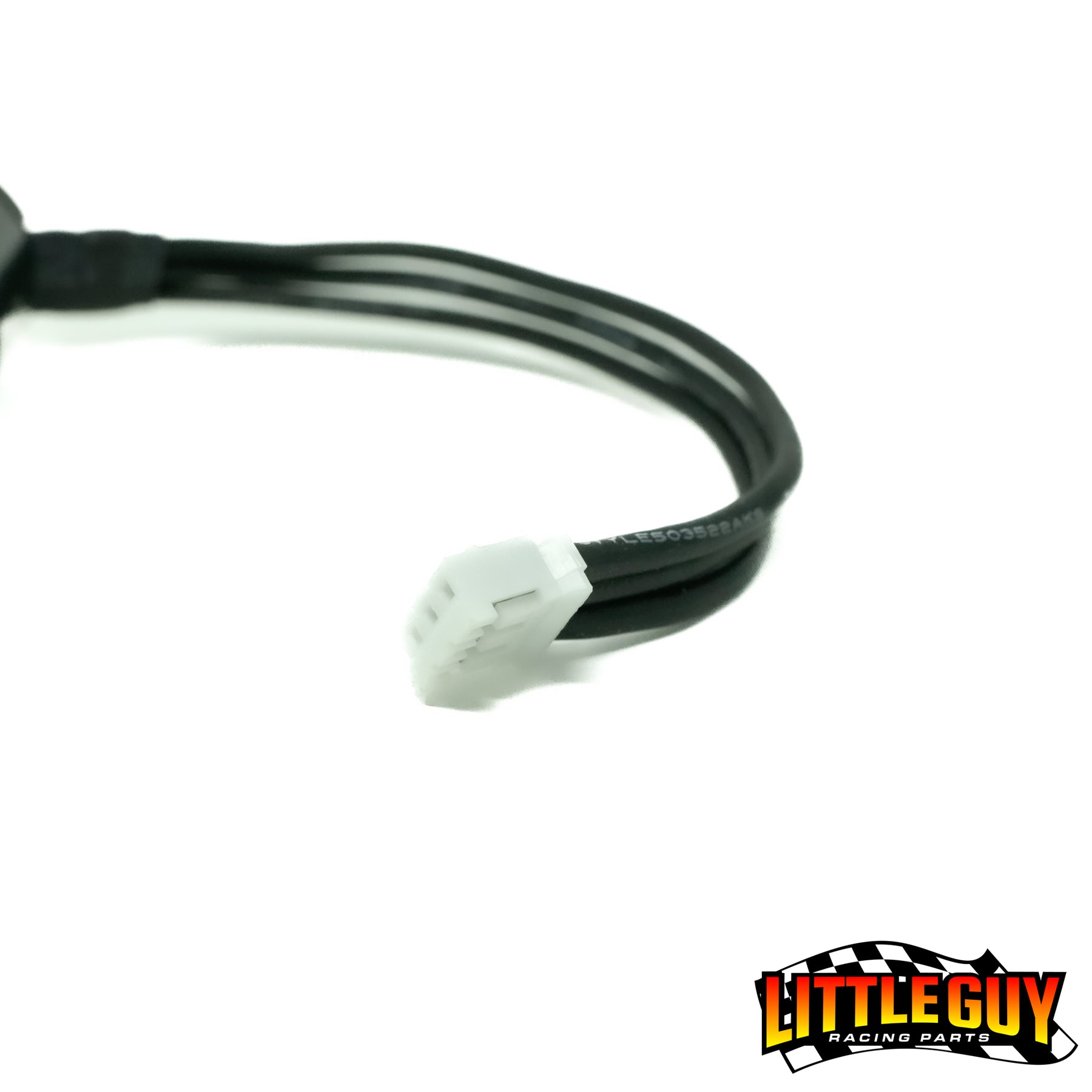

CONNECTION TYPE: PH3.0
BATTERY: 2-3S
MOTOR SIZE: 15.5X20MM
SHAFT: 1.9X6MM
WEIGHT: 17G
What's included:
(1) Brushless motor
(1) 12T .3 mod pinion gear
(1) M2 Hardware and shim kit
Disclaimer: The LGRP® Creeper Brushless motor is not compatible with the stock ESC from the SCX24™. Motor mount and transmission sold separately.
