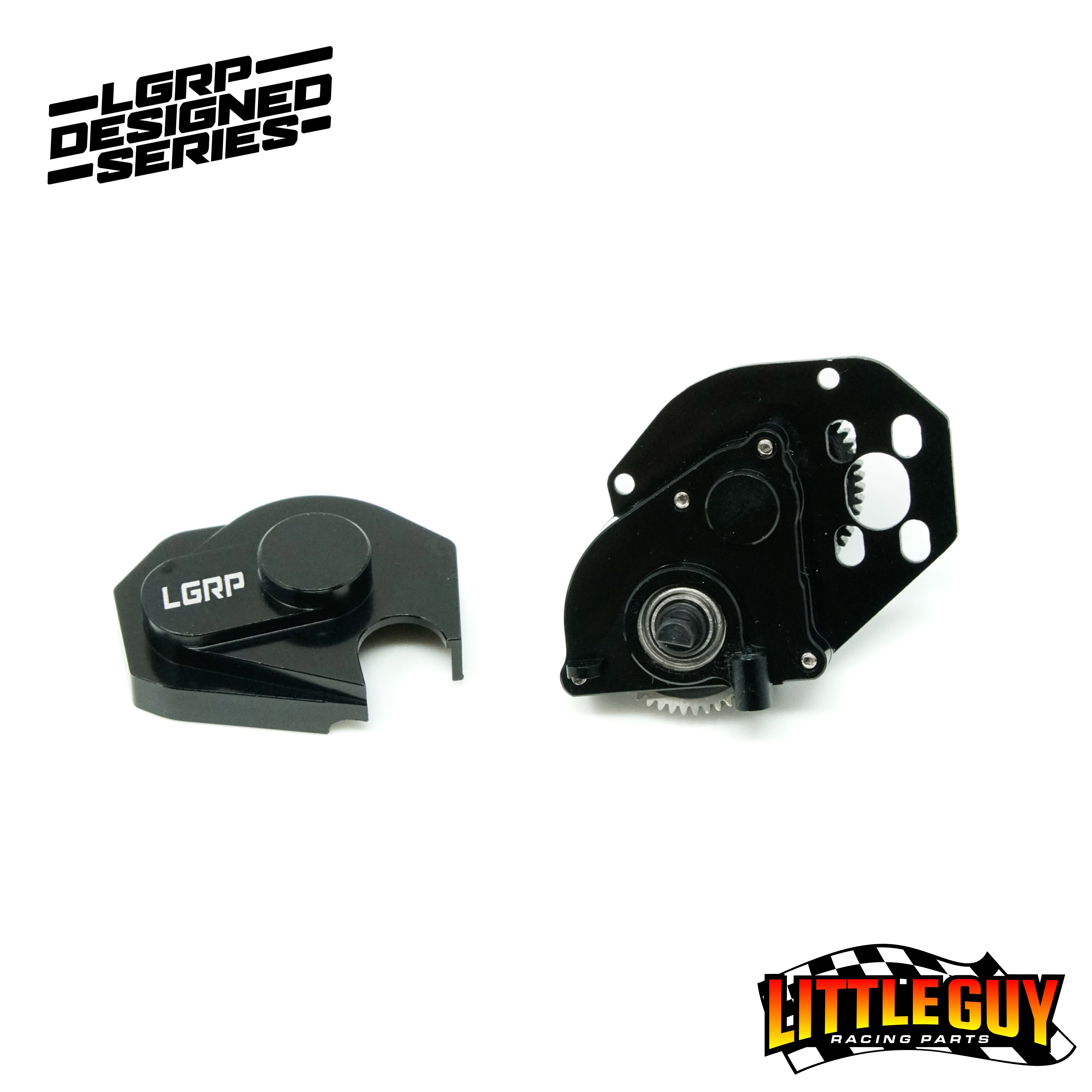

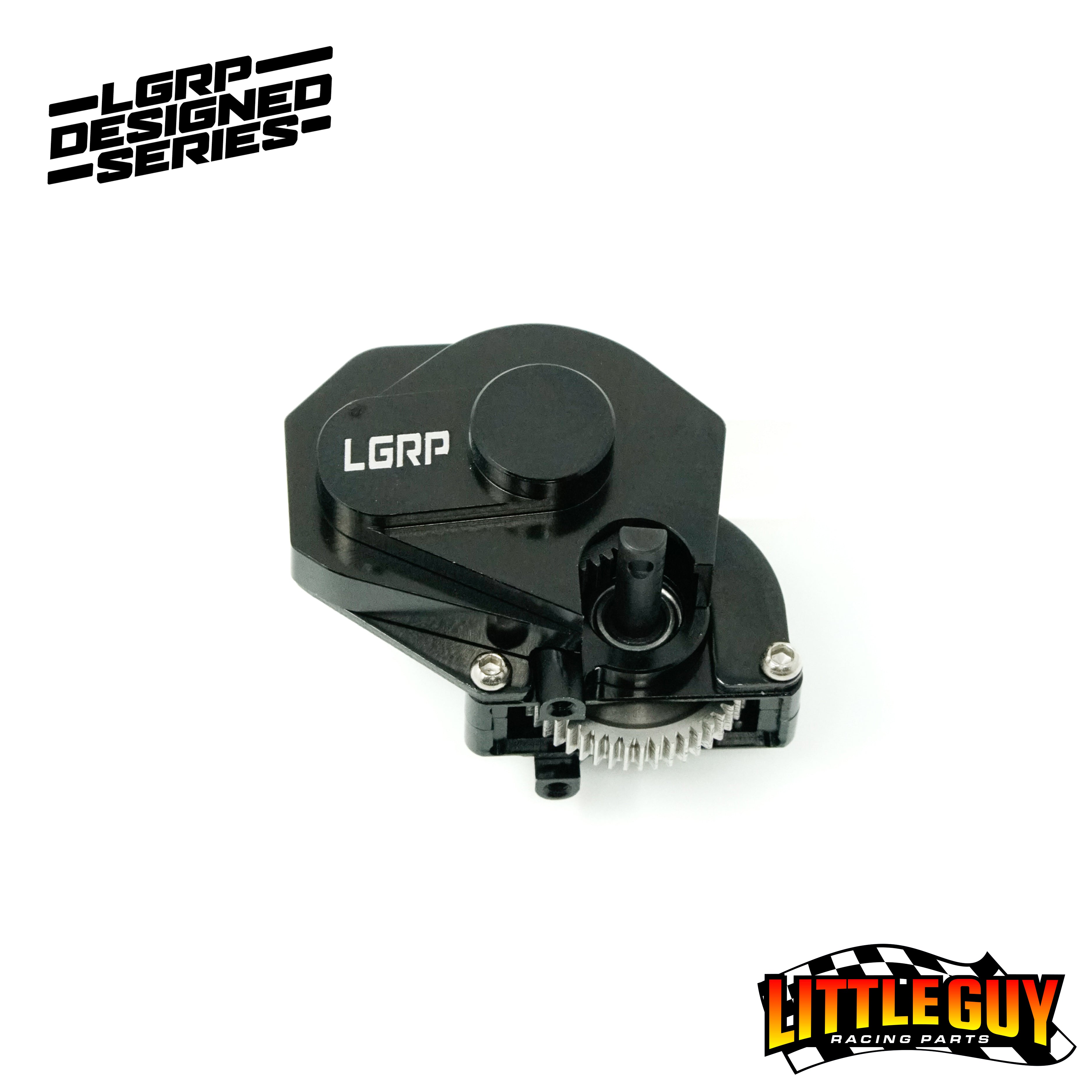

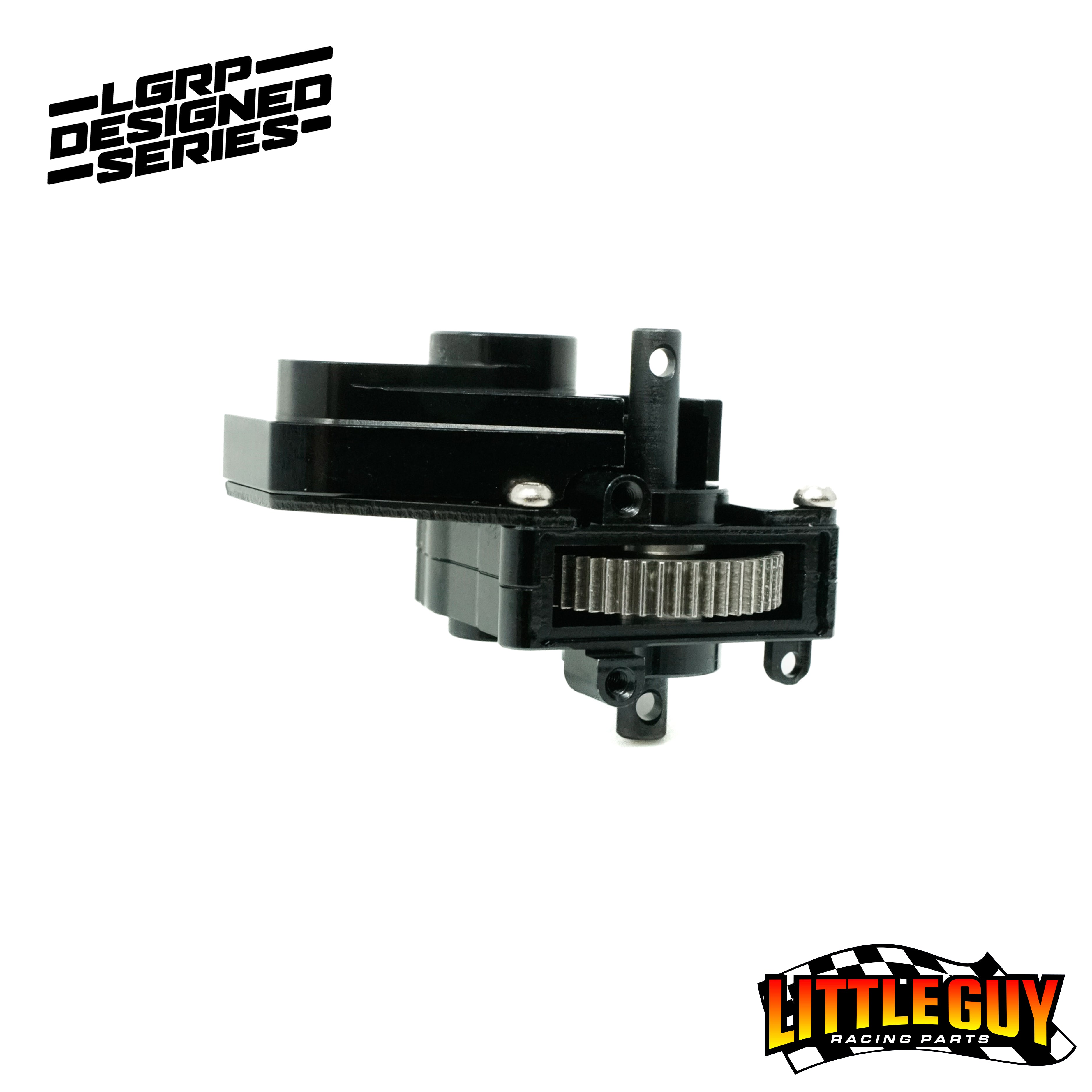

HEAVY DUTY BILLET TRANSMISSION (SCX24™)
Upgrade your RC crawler with the LGRP® Heavy Duty Billet Transmission for unmatched performance. This direct replacement is built to handle big brushless motors, eliminating gear stripping. The combination of hardened steel and stainless steel gears ensures durability and a smooth, quiet operation. Precision-cut gears and tight tolerances maximize battery life and motor power. The T-5052 aluminum CNC machined cases and spur gear cover provide strength, heat dissipation, and corrosion resistance. With pre-assembled stainless steel hardware and a stock aluminum motor plate, installation is a breeze. The ultra-smooth sealed ball bearings minimize rolling resistance, enhancing efficiency and longevity.
Features:
- Direct replacement with stock SCX24™ transmission
- HD hardened steel output shafts

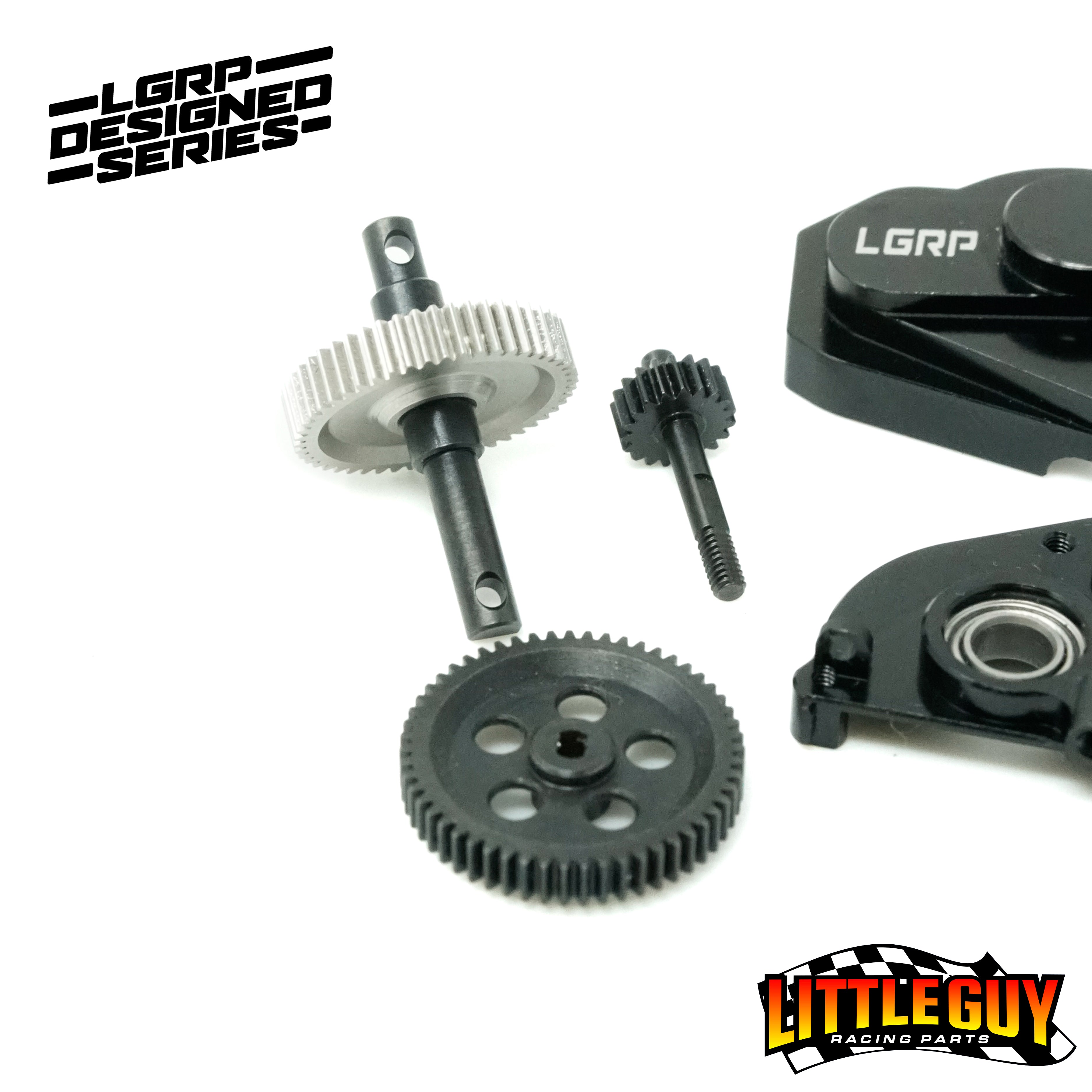

- Precision cut / lightweight transmission gear set (hardened steel / stainless steel)
- T-5052 aluminum CNC machined cases and spur gear cover
- Pre-assembled with stainless 1.4mm stainless steel hardware
- Stock 030 / 050 multi-pattern aluminum motor plate
- Ultra-smooth bearings for minimal rolling resistance
Upgrade your RC crawler with the LGRP® Heavy Duty Billet Transmission for unmatched performance. This direct replacement is built to handle big brushless motors, eliminating gear stripping. The combination of hardened steel and stainless steel gears ensures durability and a smooth, quiet operation. Precision-cut gears and tight tolerances maximize battery life and motor power. The T-5052 aluminum CNC machined cases and spur gear cover provide strength, heat dissipation, and corrosion resistance. With pre-assembled stainless steel hardware and a stock aluminum motor plate, installation is a breeze. The ultra-smooth sealed ball bearings minimize rolling resistance, enhancing efficiency and longevity.

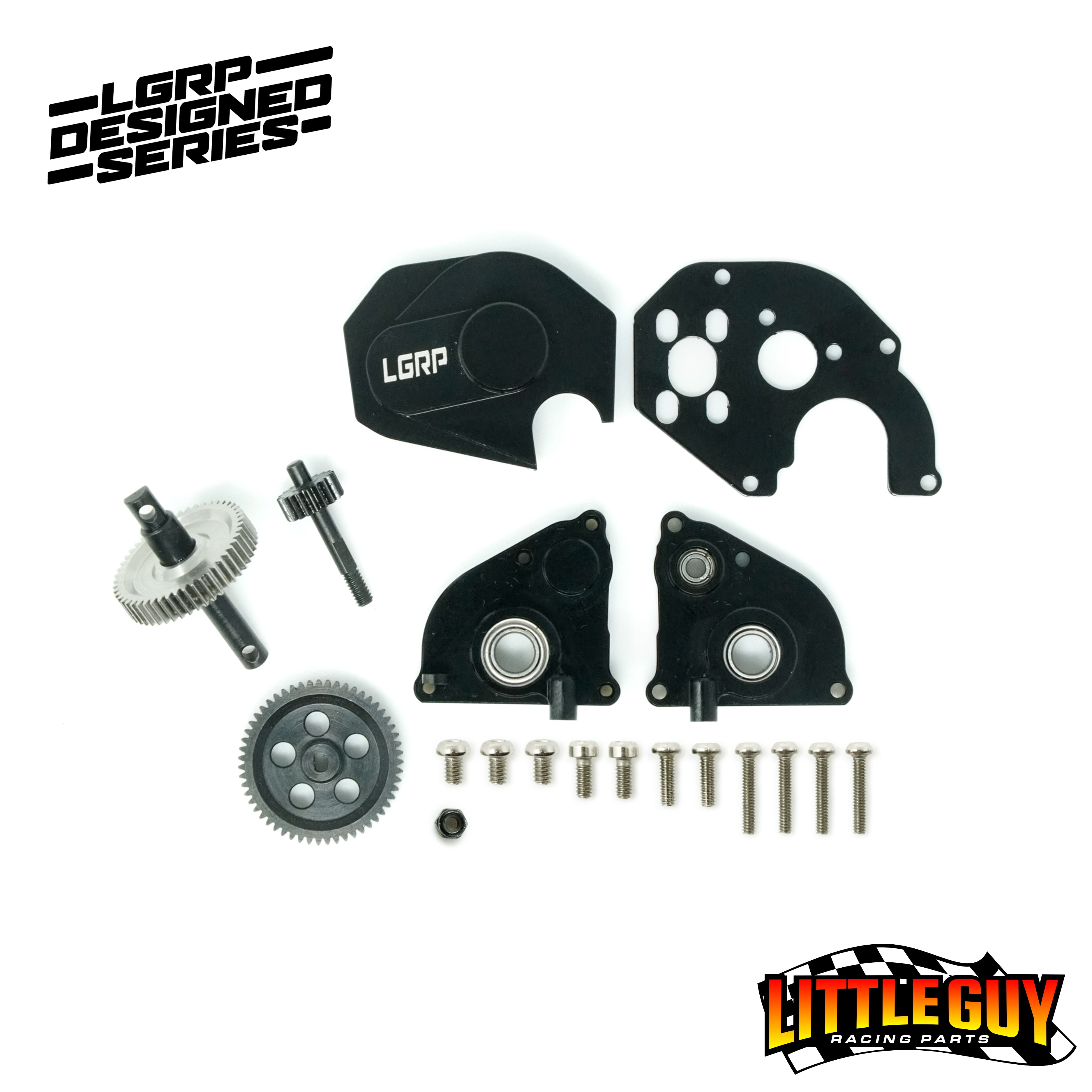

What's Included:
- (1) Pre-assembled billet transmission
- (3) 1.4mm bolts to mount to the factory skid plate
- (2) 0.3 mod nylon pinion gears
- Some spare hardware is included

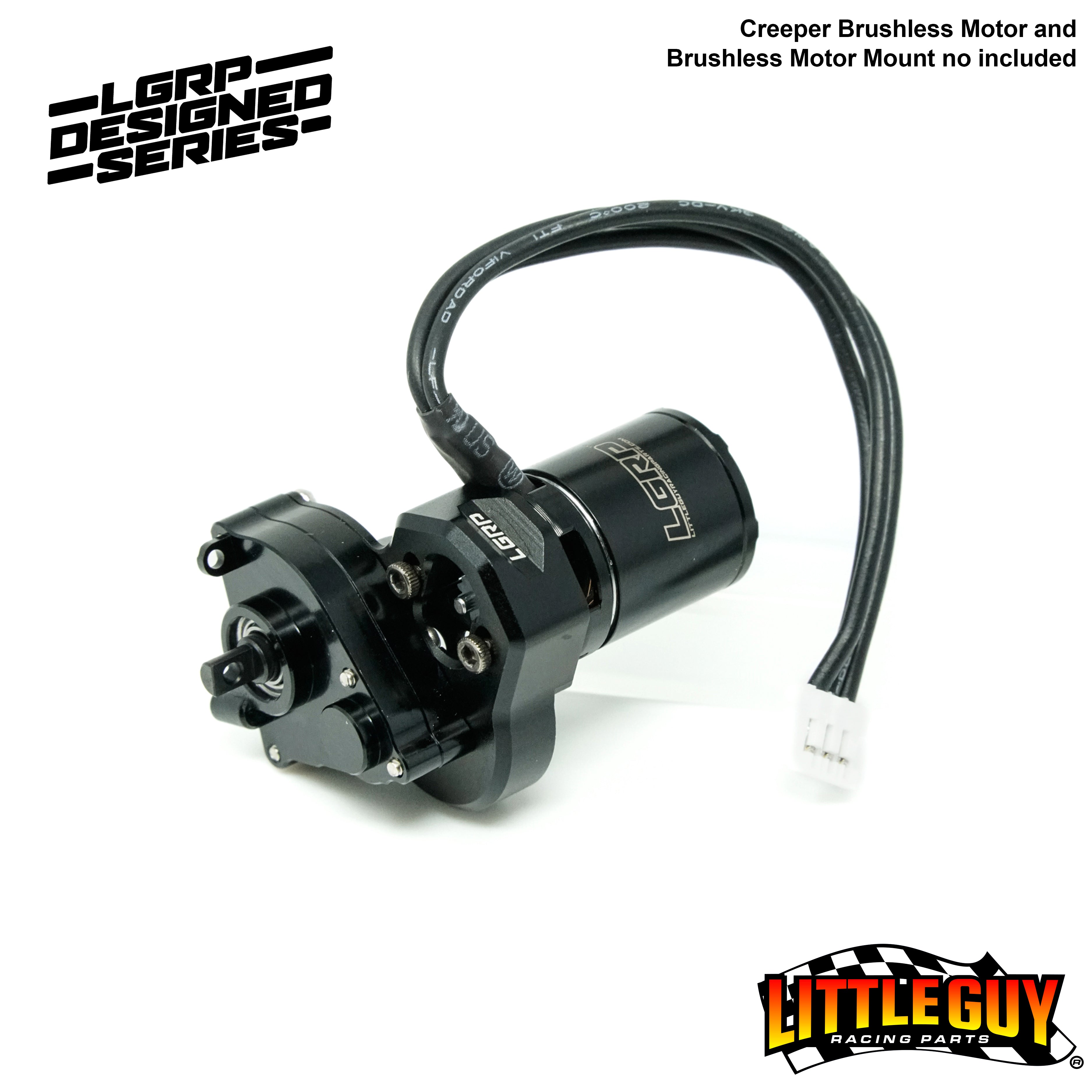

Note: This product comes with a 030/050 motor plate (Stock SCX24™ bolt pattern). Our Creeper brushless motor and Creeper motor mount are pictured for example but not included. Motor pinion may need to be super glued to motor output shaft depending on motor used. Before you glue pinion, make sure you figure out where the pinion needs to sit on the shaft. Pull the pinion back off the shaft, put a dab of super glue on the end of the motor shaft, then slide pinion back on to correct position. Let super glue dry for at least 30 minutes before use.
