LGRP® × Furitek

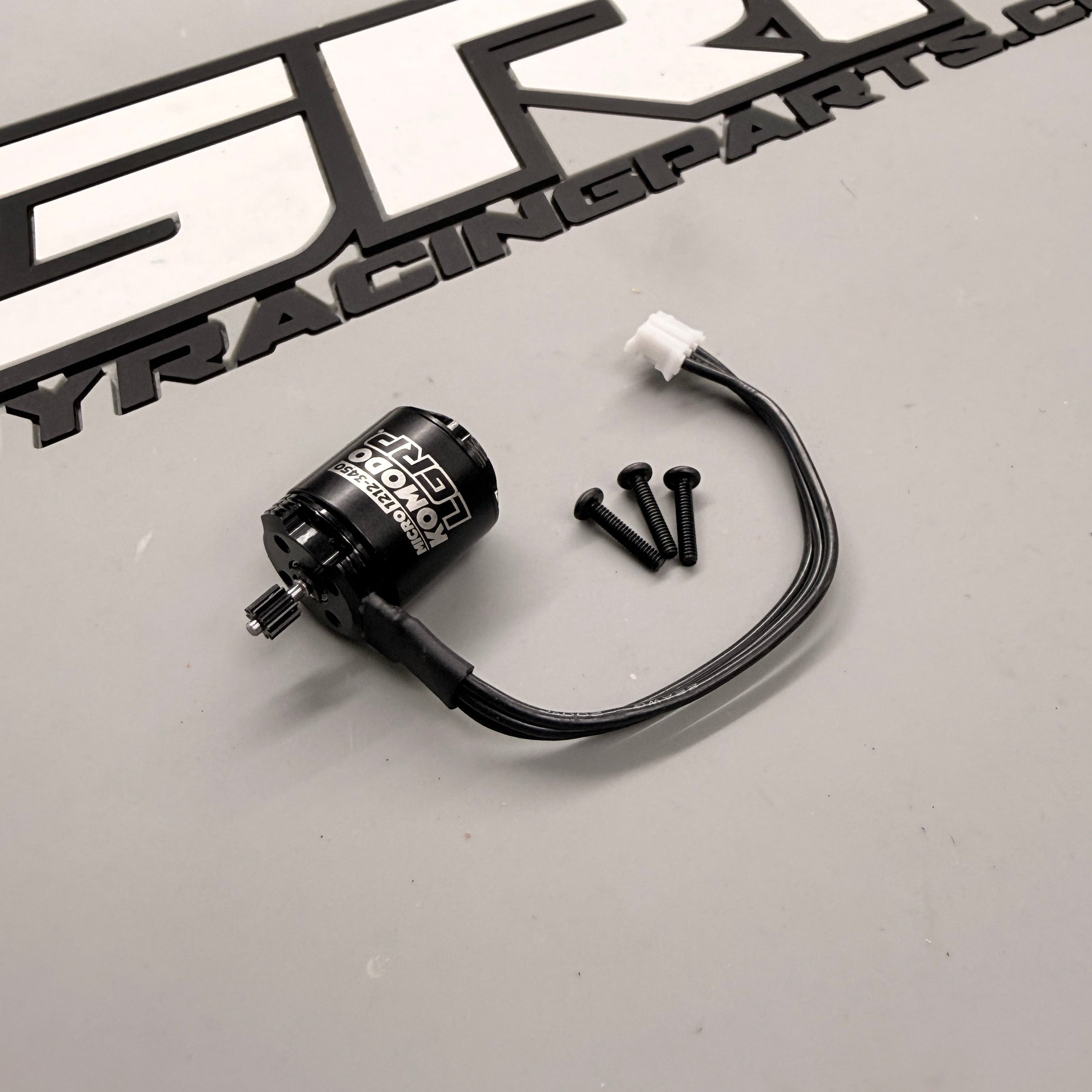

Micro Komodo Brushless Motor
The LGRP® × Furitek Micro Komodo Brushless Motor is a collaboration between Little Guy Racing Parts and Furitek, a leading name in RC crawler electronics. Designed specifically for the SCX24™ platform, this motor is built to deliver massive low-end torque with exceptionally smooth power and torque curves for serious crawling performance.
Featuring a 12-pole high-torque design with a CNC-machined 6061 T6 billet aluminum heatsink can, this motor is engineered for maximum energy conversion, heat dissipation, and long-term reliability. It ships with an 11T brass pinion gear pre-installed so you're ready to go right out of the box.
Not Stock Compatible: This motor is only compatible with motor mounts that have a 9mm bolt spread. It is NOT compatible with the stock SCX24™ motor plate or stock ESC.
Recommended Pairing: We highly recommend pairing this motor with the Furitek Lizard Pro 30A/50A ESC and the LGRP® MR24 Billet Transmission for optimal performance.
No Batteries Included: This product does not contain batteries of any kind.
Specifications
|
KV Rating
3450 RPM/V
|
Wattage
120W
|
Battery
2S–3S
|
|
Max Current
10A
|
No-Load Current
0.7A @ 10V
|
Resistance
0.16 Ohms
|
|
Slot / Pole
12
|
Motor Size
15.5 × 20.6mm
|
Shaft
1.5 × 6mm
|
|
Weight
17.5g
|
Bolt Pattern
9mm Spread
|
Pinion Gear
.3 Mod 11T (Pre-Installed)
|
Features
+
|
12-Pole High-Torque Design
Delivers massive low-end torque with a smooth, controllable power curve built for precision crawling.
|
CNC Billet Aluminum Heatsink
6061 T6 aluminum can provides superior heat dissipation and long-term durability under sustained load.
|
|
Japanese NMB Bearings
High RPM ABEC5-rated bearings for smooth, reliable operation and extended motor life.
|
Precision Balanced Rotor
Factory-balanced rotor ensures maximum reliability, reduced vibration, and the highest achievable RPM.
|
|
Super Thin Stator Laminations
0.2mm laminations enhance efficiency and reduce heat buildup during extended runs.
|
High-Purity Copper Windings
Single copper windings rated for higher temperatures, ensuring excellent efficiency and reliability.
|
What's Included
+
-
1×
Micro Komodo Brushless Motor
-
3×
M2 × 10mm mounting screws
-
1×
.3 mod 11T brass pinion gear (pre-installed)
⚠ Prop 65 Warning: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information visit P65Warnings.ca.gov.
