LGRP® MICRO KOMODO MOTOR + LIZARD PRO ESC BUNDLE
Elevate your RC crawling experience with the ultimate performance bundle from Little Guy Racing Parts and Furitek. This exclusive package combines the LGRP® X Furitek Micro Komodo Brushless Motor with the Lizard Pro 30A/50A ESC, offering an unbeatable combination of power, precision, and control.

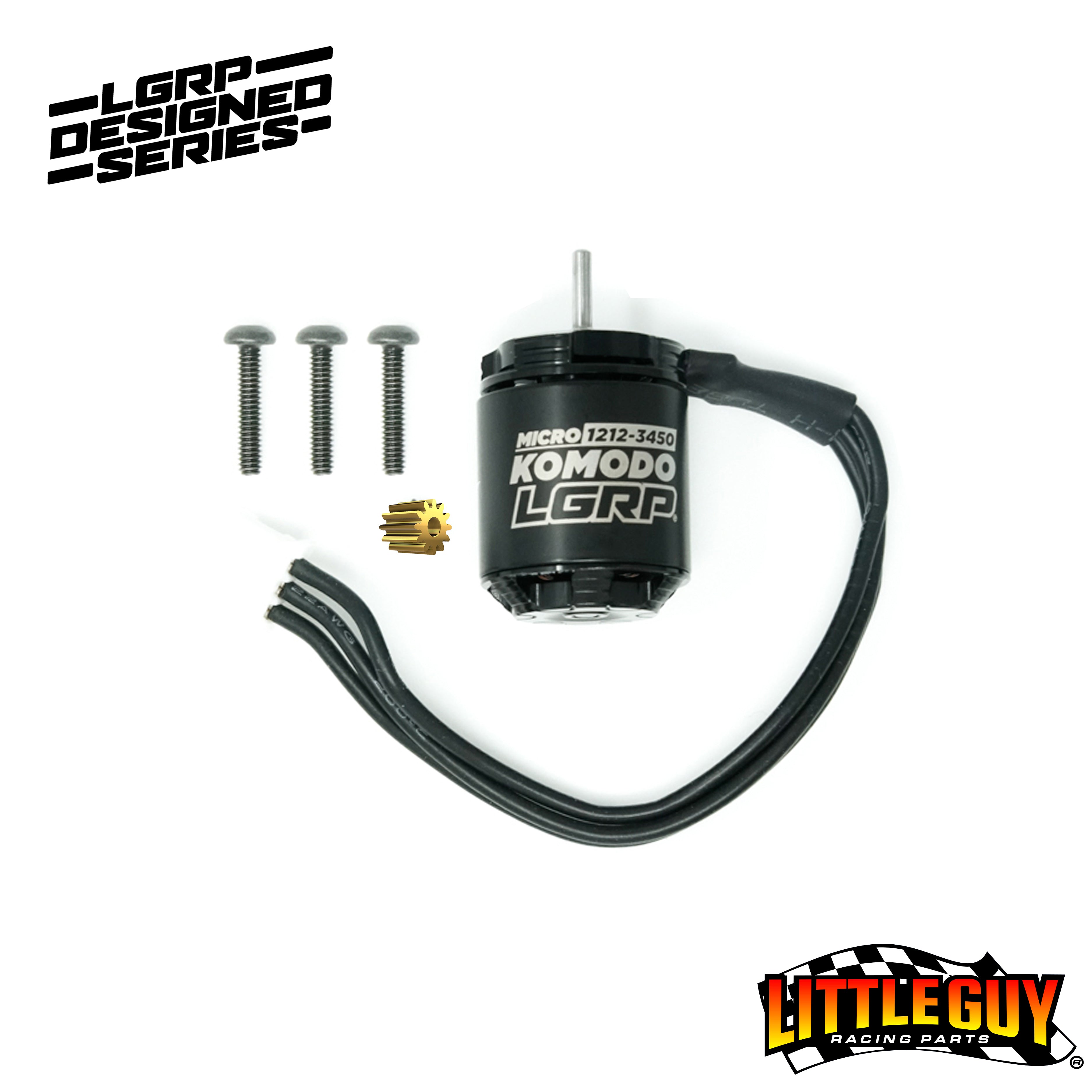

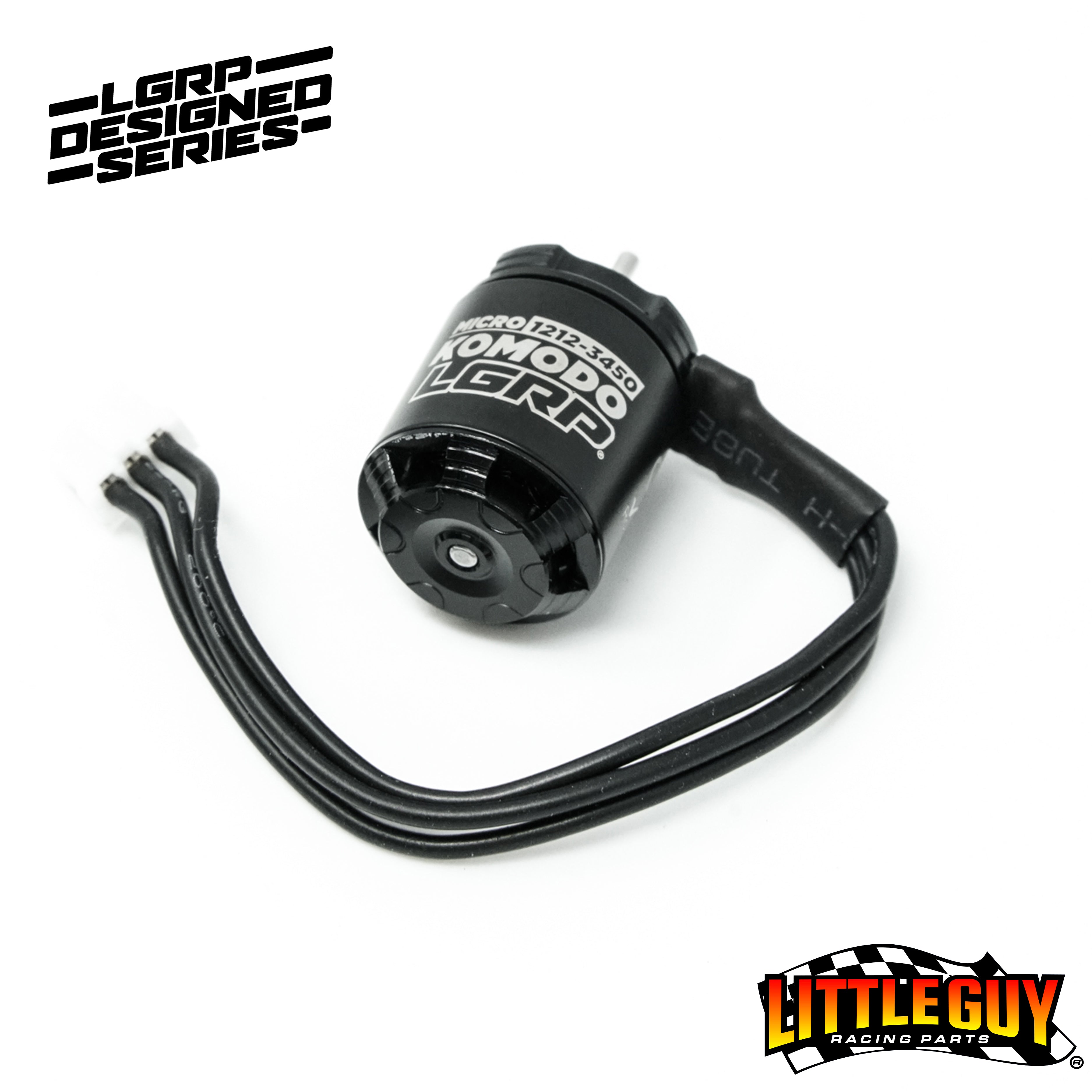

LGRP® X Furitek Micro Komodo Brushless Motor
This high-performance brushless motor is engineered to deliver exceptional low-end torque and smooth power curves, ensuring superior crawling capabilities.
- 12 Pole Hi-Torque Motor Design: Unmatched power and performance.
- Super Thin (0.2 mm) Stator Laminations: Enhances efficiency and reduces heat.
- Japanese NMB High RPM ABEC5 Bearings: For smooth and reliable operation.
- Precision Balanced Rotor: Guarantees reliability and maximum RPM.
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can: Superior heat dissipation and durability.
- Precision Engineered for Maximum Energy Conversion: Optimized for demanding RC crawling.
- High Purity Single Copper Windings: Excellent efficiency and reliability.
Specifications:
- KV (RPM/Motor): 3450
- No-load Current @10V: 0.7A
- Watt: 120W
- Battery: 2-3S
- Resistance: 0.16 Ohms
- Max Current: 10A
- Slot/Pole: 12
- Motor Size (mm): 15.5x20.6
- Shaft (mm): 1.5x6
- Weight (g): 17.5
- Bolt Pattern Spread: 9mm
What's Included:
- (1) Brushless Motor
- (3) M2 x 10mm Mounting Screws
- (1) .3 Mod 12t Steel Pinion Gear
Compatibility Note: This motor is compatible with motor mounts featuring a 9mm bolt spread. It is not compatible with the stock SCX24™ motor plate or stock ESC. For optimal performance, we recommend pairing it with the Furitek Lizard Pro 30A/50A ESC and our MR24 Transmission.

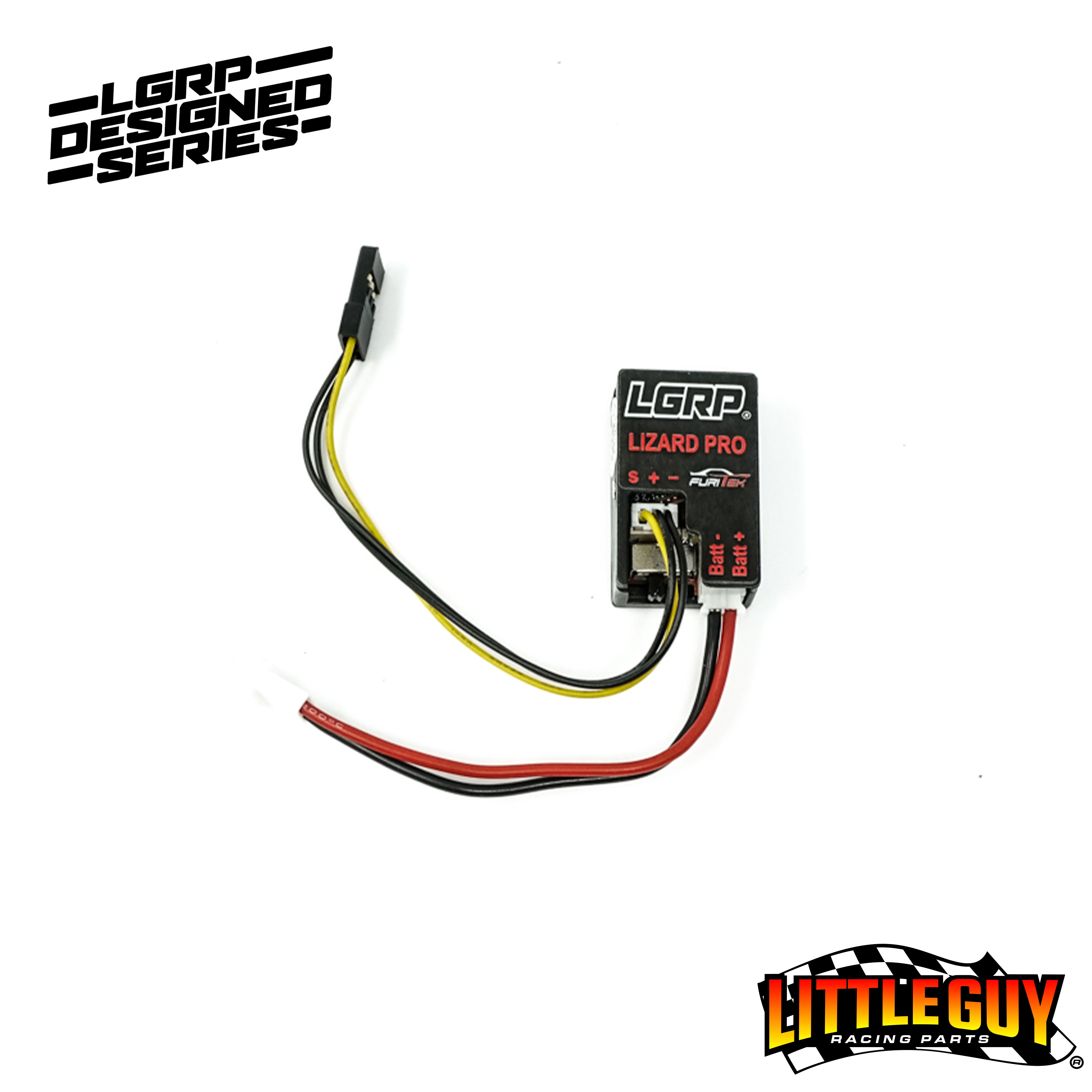

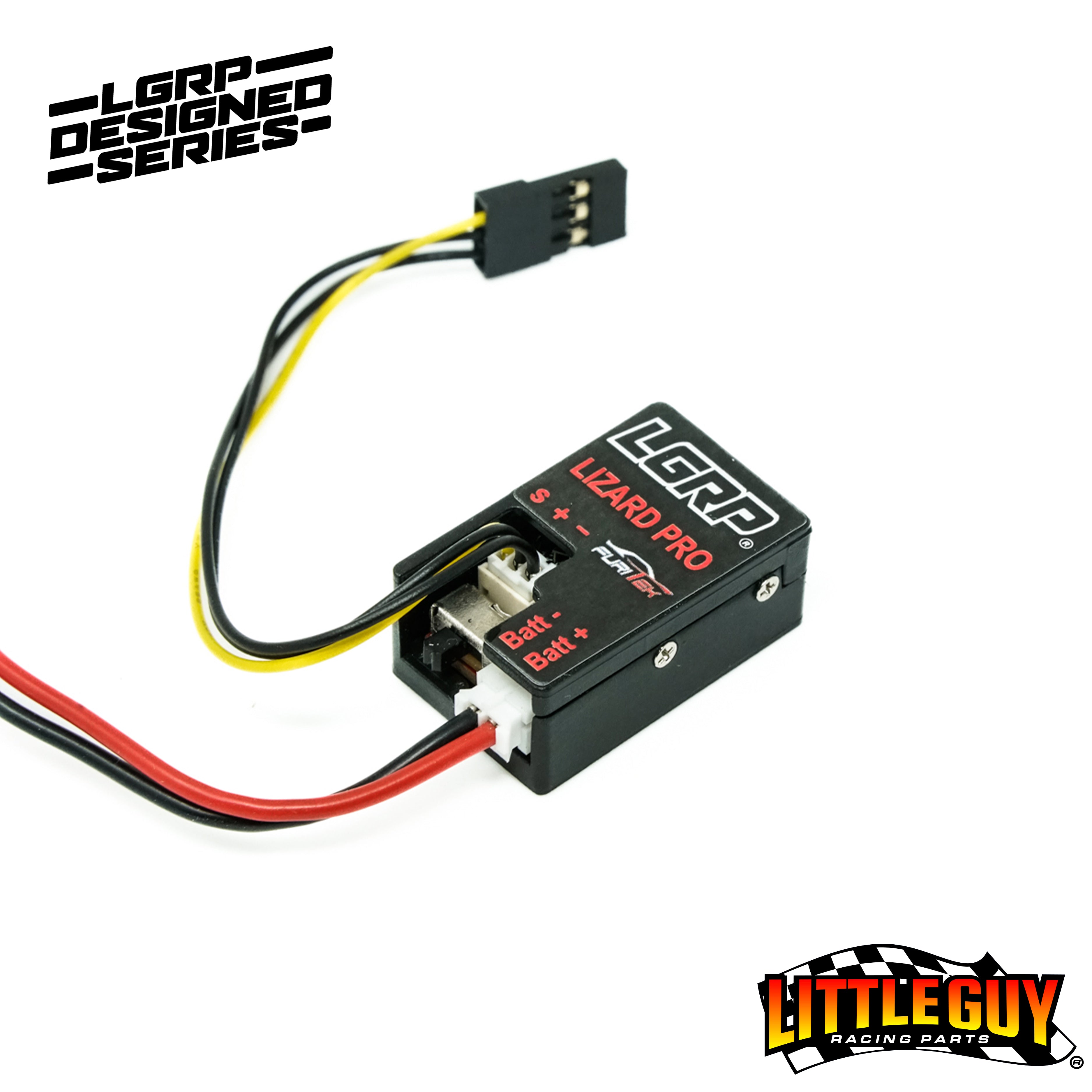

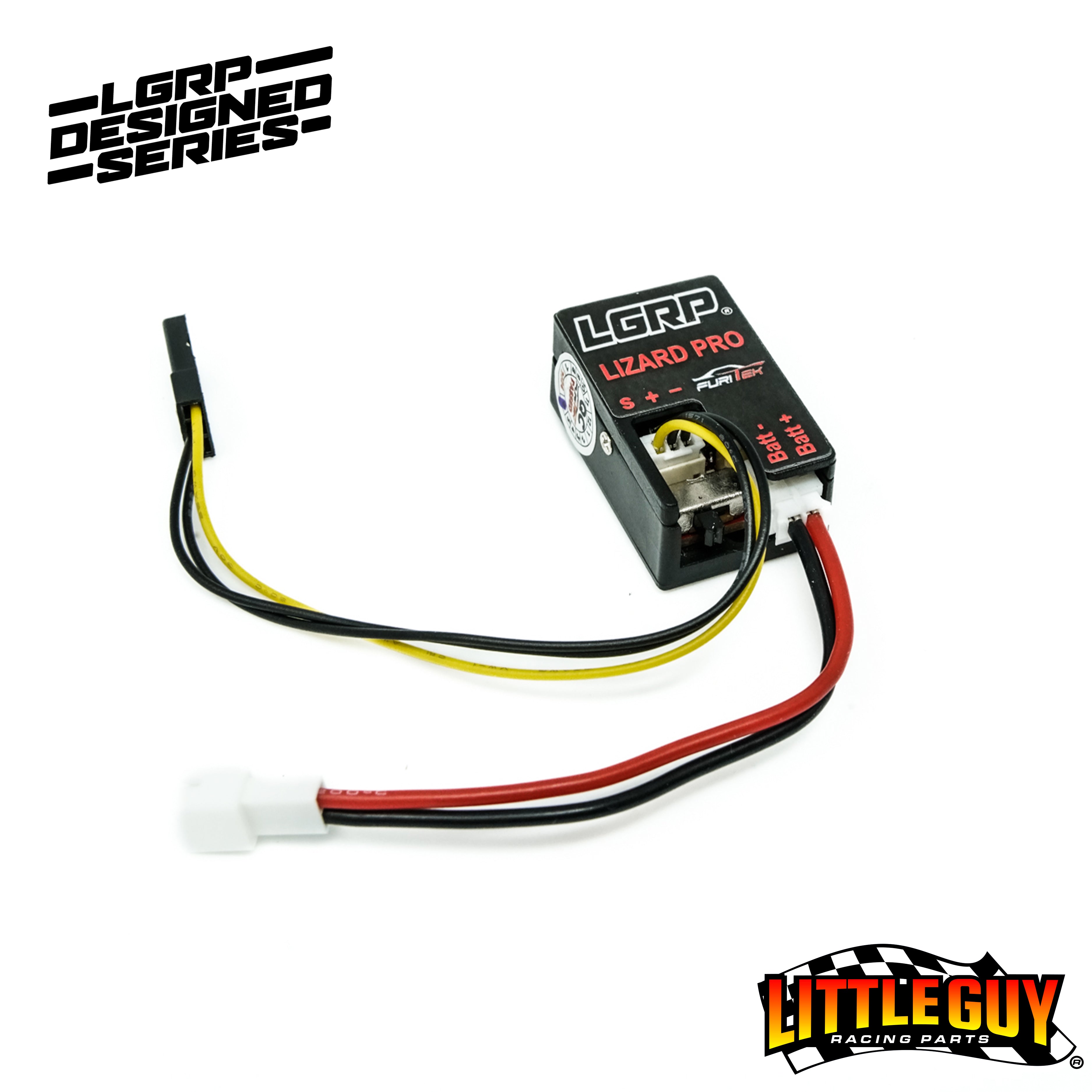

LGRP® Lizard Pro 30A/50A Brushed/Brushless ESC
Designed specifically for the Axial SCX24™, this ESC provides flexible control with support for both brushed and brushless motors, enhanced by advanced features and easy programming.
- Sensorless Brushless & Brushed Motor Support: Configurable via app (default is brushless).
- FOC Technology: Field-oriented control for smooth operation.
- Plug & Play Design: Tailored for AXIAL SCX24™ crawlers.
- 5V/6.5V 2.5A Built-in BEC: Configurable via app, eliminating the need for an external BEC.
- 2S-3S LiPo Battery Support: Versatile power options.
- Mini Size & Lightweight: Easy integration into your setup.
- App-Based Programming: Compatible with Android and iOS.
- Real-Time Telemetry: Up to 10Hz, compatible with stock TX/RX or any other TX/RX.
Specifications:
- Constant Current: 30A
- Burst Current: 50A
- Built-in Switch Power
- Dimension (mm): 28(L) x 15.5(W)
- Weight: 3.7g
Compatibility Note: When pairing with the LGRP® X Furitek Micro Komodo Brushless Motor, use the app to calibrate throttle, brake, and reverse functions, and set the ESC to "Micro Komodo tune." For brushed motors, an adapter cable is required.

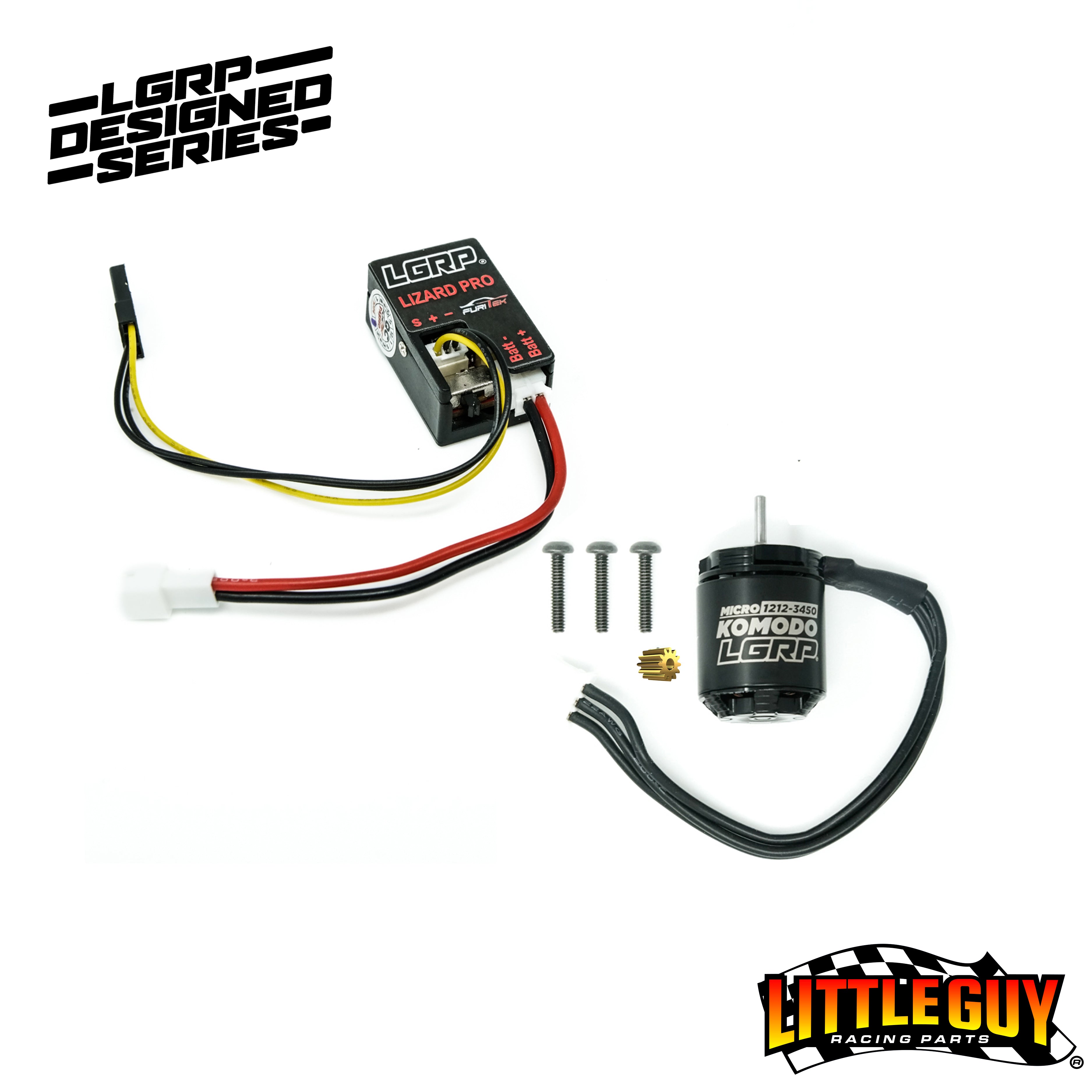

Bundle Includes:
- (1) LGRP® X Furitek Micro Komodo Brushless Motor
- (1) LGRP® Lizard Pro 30A/50A ESC
This product does not contain and any batteries of any kind.
