LGRP® Super 8 Front Axle – V1
Upgrade your crawler with the LGRP® Super 8 Axles, engineered for enhanced trail performance and reliability. Designed to deliver the benefits of a wider stance and refined geometry, these axles provide maximum stability, increased steering power, and smoother handling—without the typical downsides like servo overload or poor scrub radius.
Available in two high-performance options: Billet Aluminum or Injection Molded Plastic.
Key Features (Both Options)
+16mm Wider Track Width
+8mm per side over stock SCX24™, total hex-to-hex width of 99mm for improved control and stability.
41° of Steering
Equipped with upgraded LGRP® U-joint axle shafts for sharper, more responsive steering (vs. 27° stock SCX24™).
Pre-Installed 2/12 Overdrive Gear Set
Helps reset scrub radius to stock geometry, boosts steering response, and reduces servo strain.
Improved Link & Shock Geometry
Widened mounting positions provide better articulation and balance across diverse terrains.
High-Clearance Housing Design
Optimized housing and differential design help the axle glide smoothly over obstacles.
Clean Third-Member Styling
Sleek, smooth diff covers on both front and rear housings add a scale-realistic appearance.
Compatible with Aftermarket Servo Trays
Works seamlessly with most SCX24™ servo trays, including LGRP® Tremor and Emax trays.
Knuckle Ready
Fits most SCX24™-style knuckles. For added performance, we recommend the LGRP® Brass Knuckles for a guaranteed fit.
Material Options

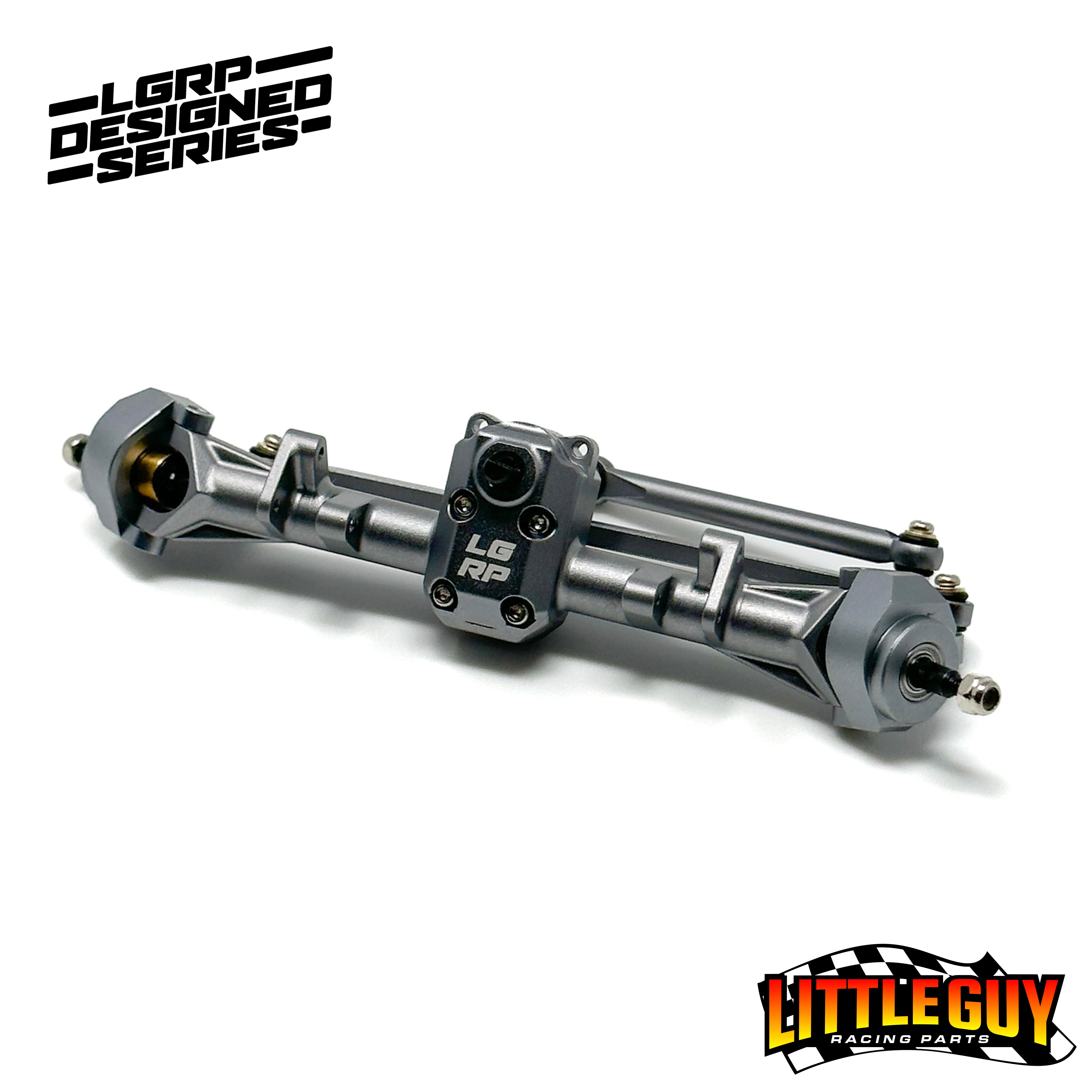

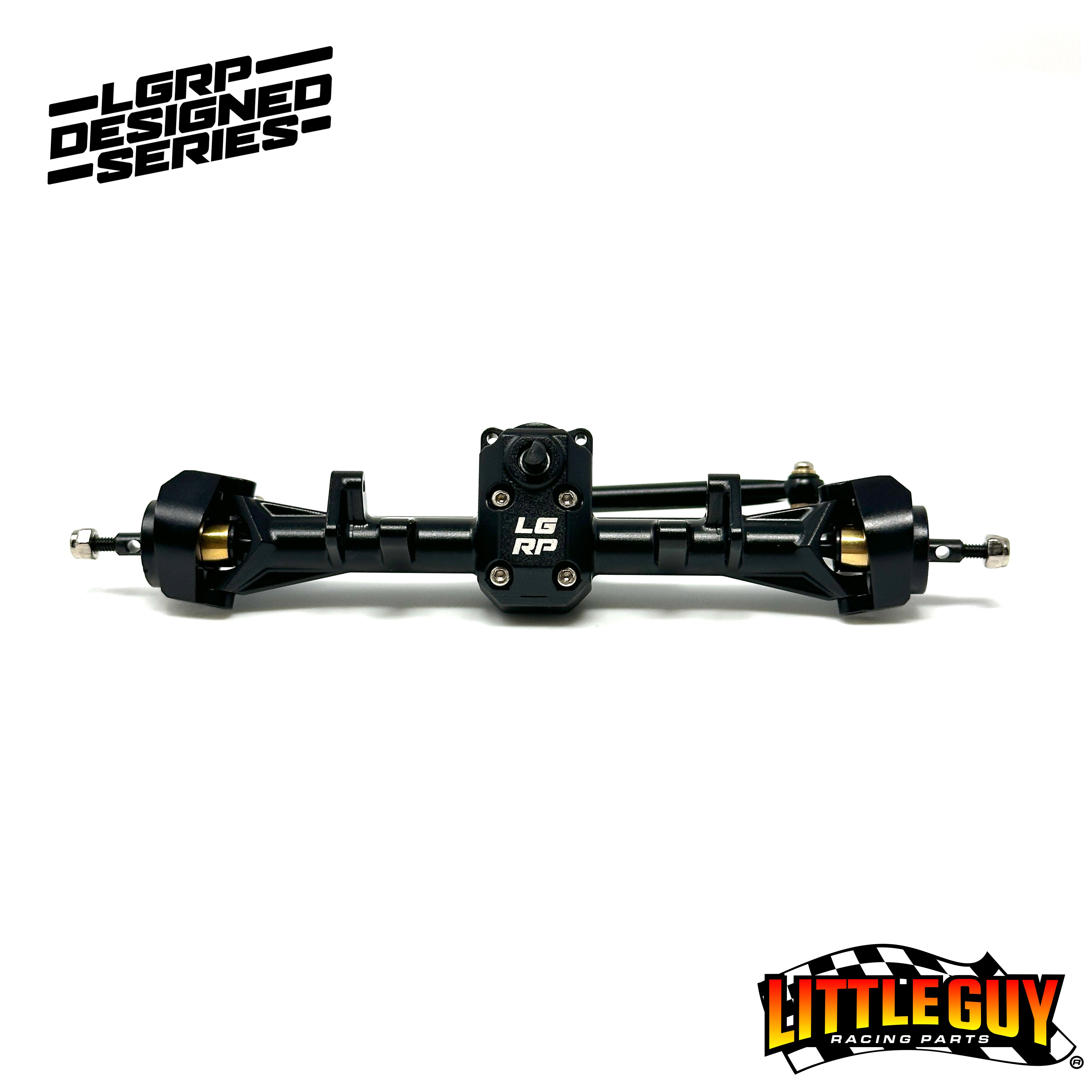

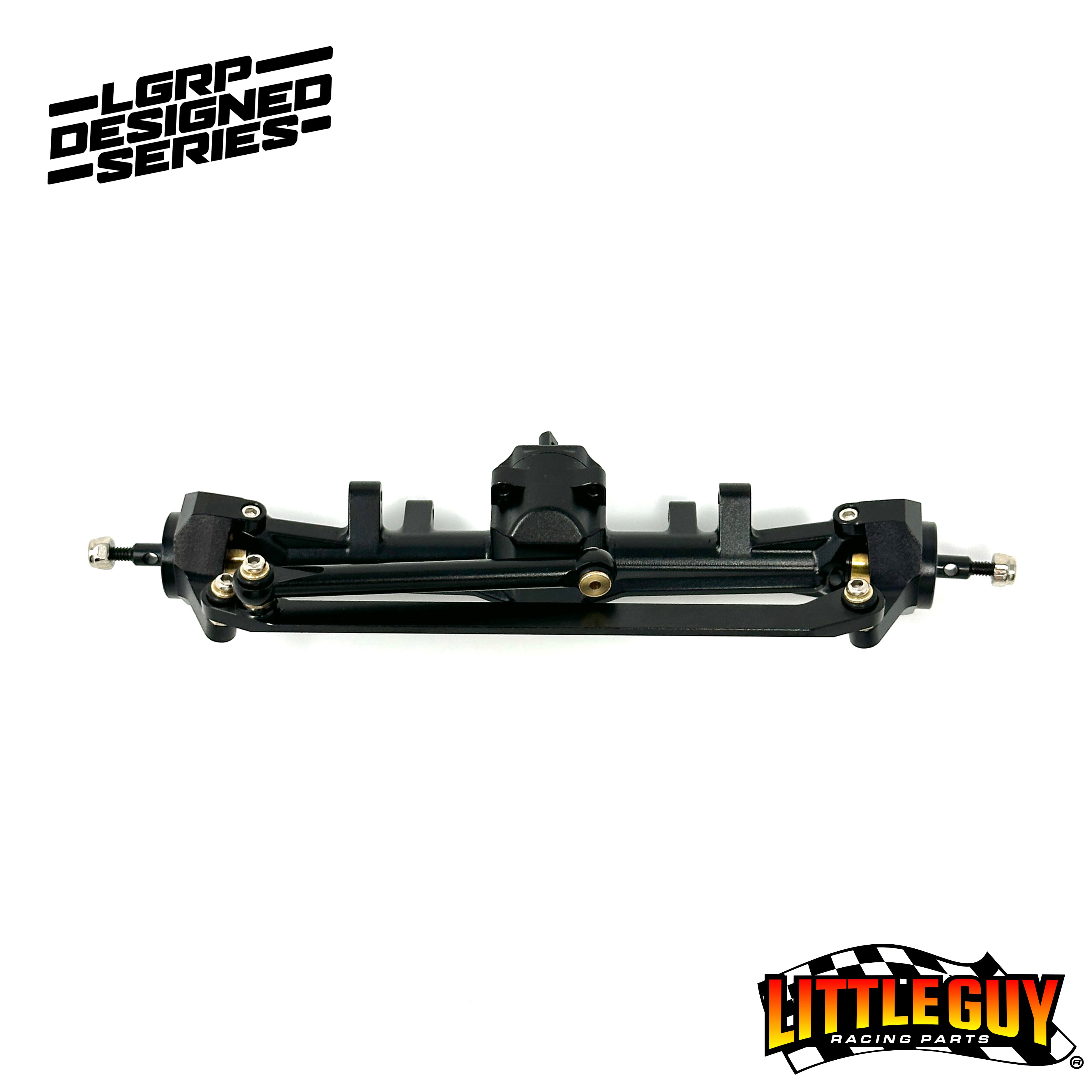

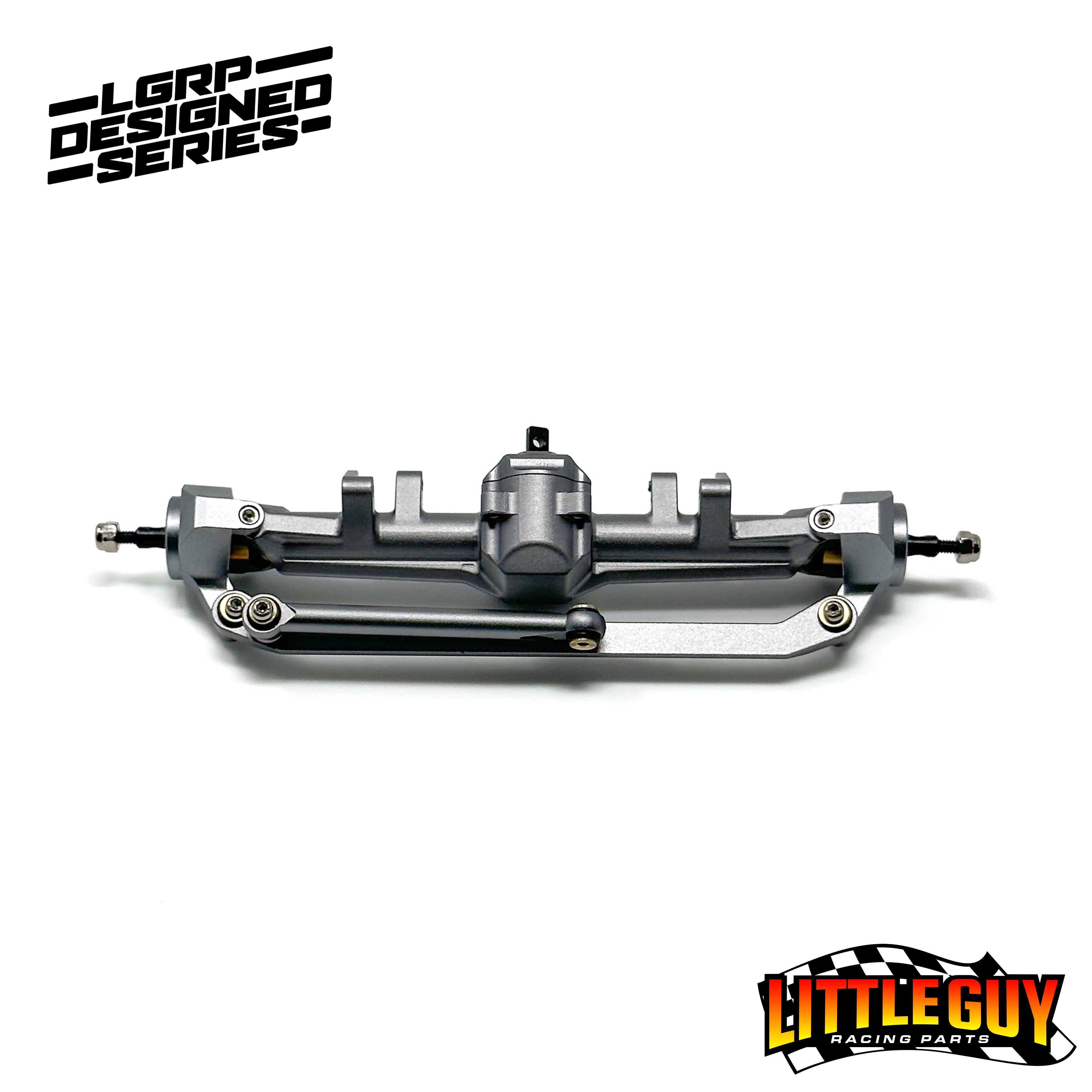

Aluminum Option
CNC-machined 7075-T6 Billet Aluminum Housing
Available in Satin Grey or Satin Black anodized finishes
Includes Billet Aluminum Tie Rod Set with Brass Link Balls

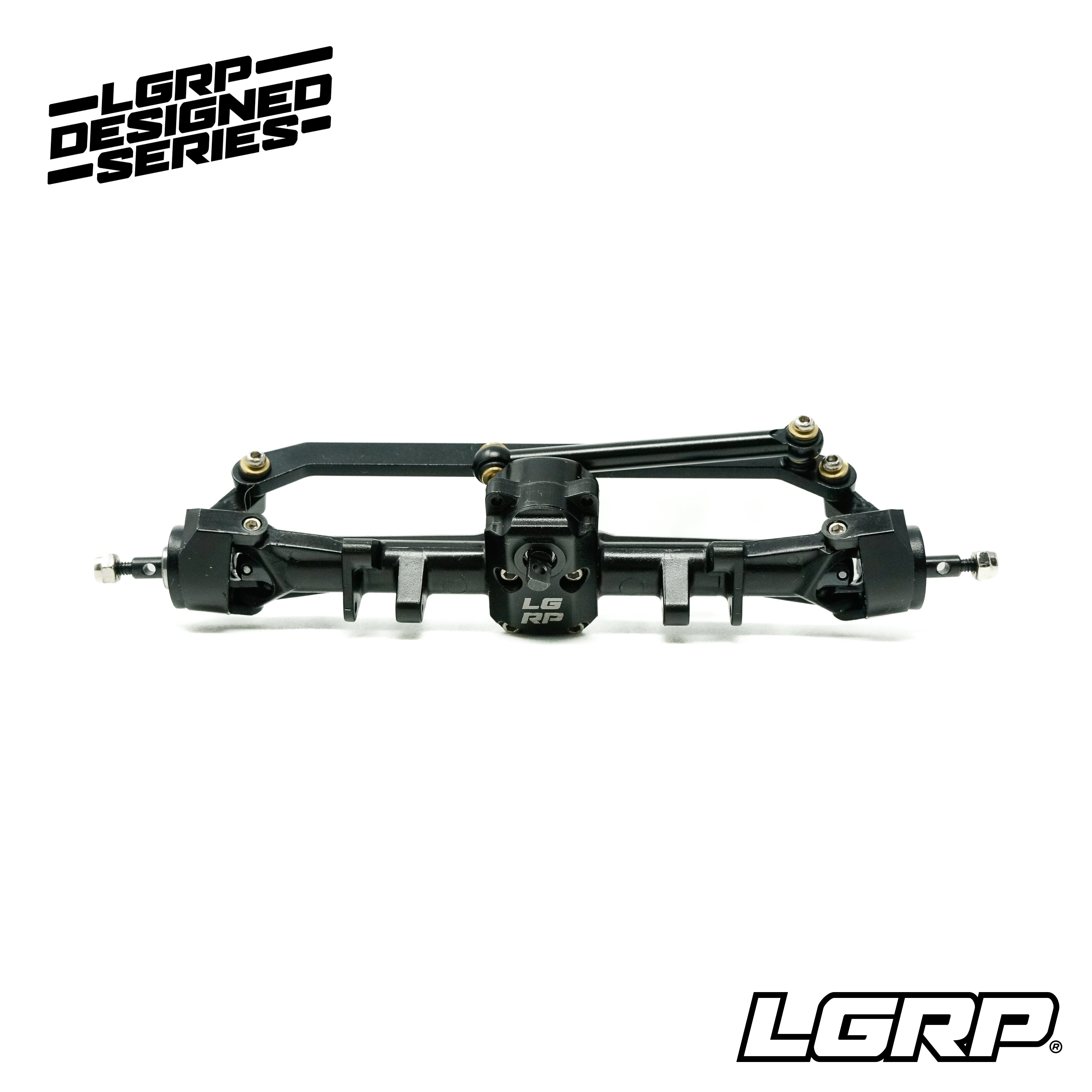

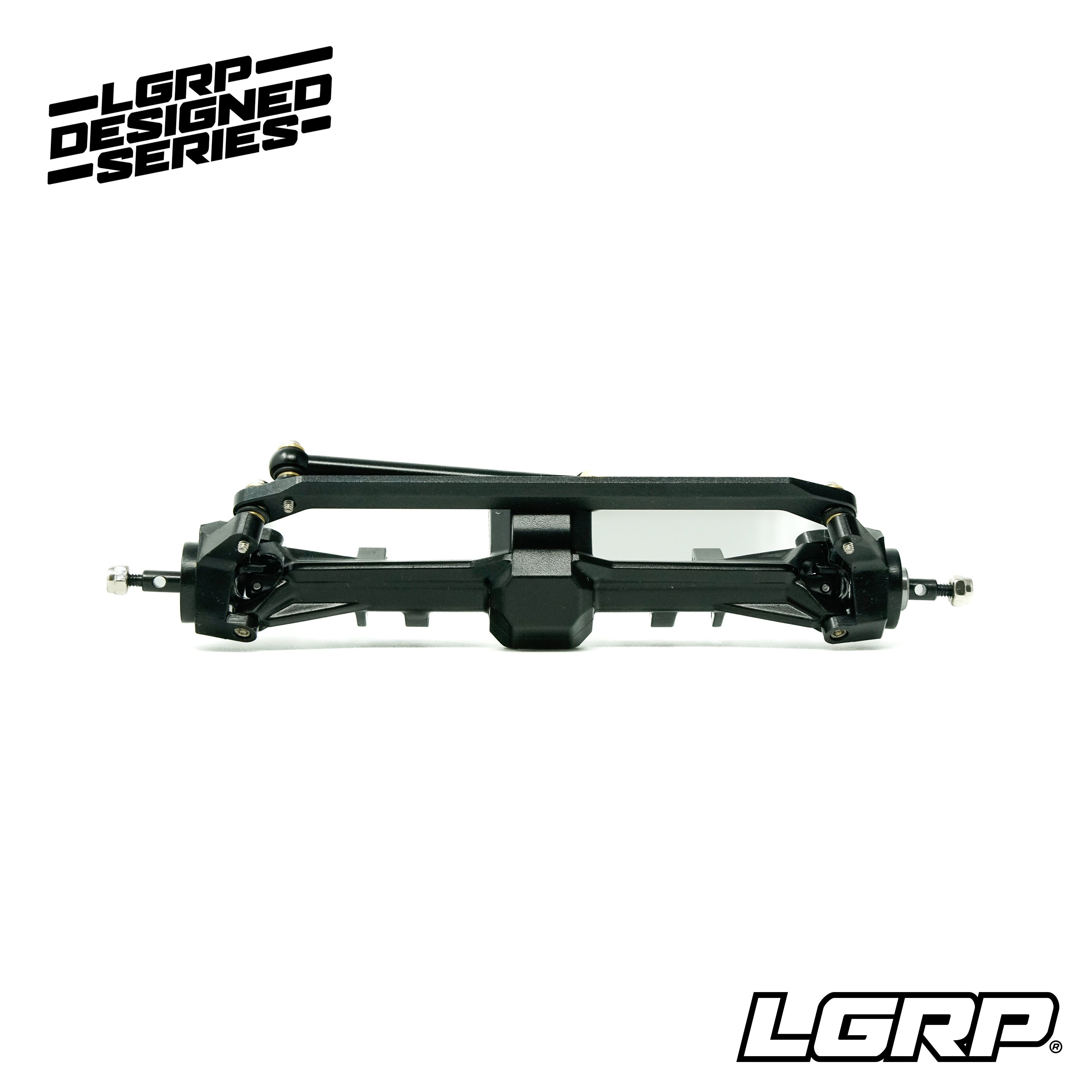

Injection Molded Option
Lightweight Injection Molded Plastic Housing
Maintains the same proven geometry and performance at a more cost-effective price
Includes Billet Aluminum Tie Rod Set with Brass Link Balls
What’s Included
(1) Pre-Assembled Super 8 Front Axle Kit
(1) Billet Aluminum Tie Rod Set with Brass Link Balls
Spare Parts: Link Balls, O-Rings, and Hardware
What You’ll Need to Finish
Servo Mount: Compatible with most aftermarket trays (Tremor or Emax recommended)
Hex Adapters: Sold separately or reuse your own
Important Notes
Builder’s Axles: Designed for stretched wheelbase crawlers. Using stock-length links may cause binding or limited articulation.
Lower Links: Recommended 60mm eye-to-eye or longer for chassis with triangulated SCX24™-style skids.
Servo Recommendation: Works best with Tremor or Emax servos using the LGRP® Servo Tray.
⚠️ Important Compatibility Notice:
This product is not compatible with V2 Super 8 Axles. Components, fitment, and dimensions differ between V1 and V2 designs. Please ensure you are purchasing parts that match your axle version before ordering.
